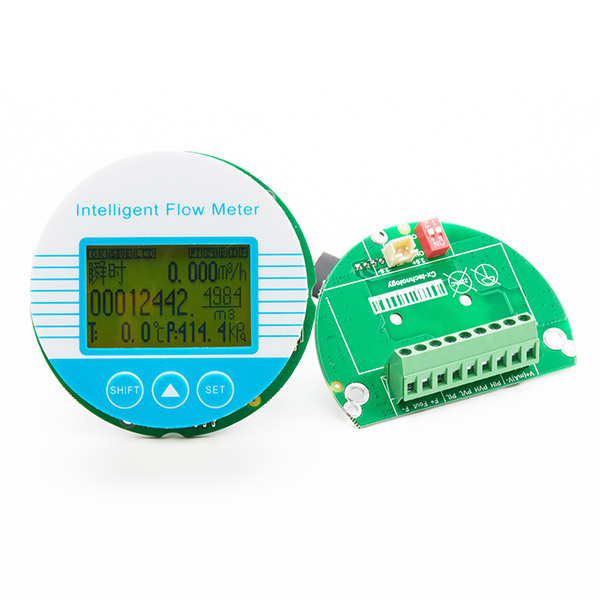

Liquid Turbine Flowmeter Motherboard – Dual-Function for Turbine & Oval Gear
This liquid turbine flowmeter motherboard is a high-performance signal processing and control unit designed for precision liquid flow measurement. It supports a wide range of communication protocols, output types, and power options. With its unique reconfigurable design, the same board can be adjusted to work with oval gear flowmeters, providing excellent flexibility for inventory management and OEM applications.

Key Features & Functions
Communication Protocols
RS485 Modbus (standard)
HART protocol
GPRS (in development / coming soon)
Analog & Pulse Outputs
4–20mA
0–5V / 1–5V / 2–10V / 0–10V
Frequency output
Equivalent pulse (scaled pulse output)
Power Supply Options
220V AC
24V DC
Battery-powered (for remote or field use)
Flow Compensation
Temperature & pressure (T/P) compensation for density and viscosity correction
Hardware & Control Features
Split-mounted design (separate display from sensor)
Dual relay alarm outputs (high/low flow rate, temperature, or pressure alarms)
Special Feature – Dual Flowmeter Compatibility
Configurable for liquid turbine flowmeter operation
Reconfigurable for oval gear flowmeter operation (same functions as above apply)

Applications
Diesel, gasoline, and light fuel dispensing/measurement
Water and chemical liquid flow monitoring
Industrial process control (via 4–20mA / HART to PLC/DCS)
Remote pipeline or tank farm monitoring (battery + GPRS)
Lubricating oil and hydraulic oil measurement

Why Choose This Motherboard
One board supports two flowmeter types — reduces inventory costs
Comprehensive output and protocol options for automation integration
Flexible power input suits both plant and field environments
T/P compensation improves accuracy for temperature-sensitive liquids
Dual relay alarm enables automatic shutoff or alert systems
